Guitar Sides

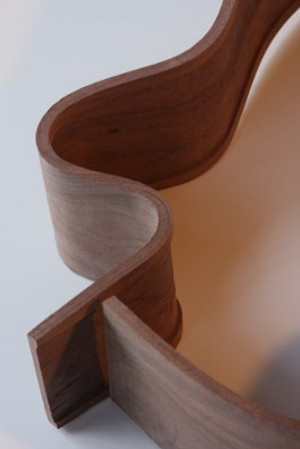

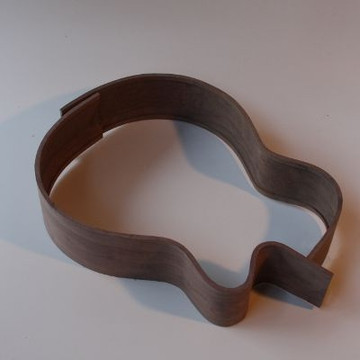

Pure Timber manufactures Cold-Bend™ tonewood for use in guitar sides. These sides are bent cold, by hand, without steam. Our thick, solid wood sides were developed to take advantage of thick walls in acoustic guitars. The thick walls help in three different ways. First, they may be thick enough that linings are not needed. Second, the sides are stiff without bracing. And third, all sound is directed to the sound board, and not lost by thinner sides that may act like a baffle or bellows.

Sold in pairs, book matched or end matched. 5" x 36" x .250. Other sizes on request. Species: Walnut, Satin Walnut (Red Gum), Sycamore (Lacewood), Cherry, Maple, Ash, Red Oak, White Oak.

  • Ambrosia Maple is highly variable and is selected for maximum impact in guitar building. The two parts will be book matched along the middle.
    Compressed Ambrosia Maple Backs to match sides
    Compressed quarter sawn lacy sycamore to match our guitar sides. Resawn and sanded to .115 (or custom). Size 8 x 18 or custom. Free shipping if order with our bending wood for guitar sides.
  • Lacy Sycamore is quarter sawn sycamore that exposes a lot of beautiful ray fleck. The material is highly variable, but is selected for maximum impact for use in guitars. This is a reference picture.
    Compressed Lacey Sycamore Backs to match sides
    Compressed quarter sawn lacy sycamore to match our guitar sides. Resawn and sanded to .115 (or custom). Size 8 x 18 or custom. Free shipping if order with our bending wood for guitar sides.
  • Lacy Sycamore is quarter sawn sycamore that exposes a lot of beautiful ray fleck. The material is highly variable, but is selected for maximum impact for use in guitars. This is a reference picture.
    Compressed Lacey Sycamore Plank 56" x 3.125" x 0.5"
    Compressed quarter sawn lacy sycamore for guitar sides or similar. Resaw to any thickness for bending. 1/4" thickness will bend to a radius as tight as 1" radius for cutaways. Use for sides, bindings and purflings. Ask to...
  • Curly Tiger Stripe Ambrosia Maple is highly variable. This is a reference picture
    Compressed Curly Tiger Stripe Ambrosia Maple Plank 53" x 3.375" x 1.5"
    Compressed Curly Ambrosia Maple Plank for guitar sides or similar. Resaw to any thickness for bending. 1/4" thickness will bend to a radius as tight as 1" radius for cutaways. Use for sides, bindings and purflings. Ask to...
  • PURE TIMBRE Guitar sides for bending
    PURE TIMBRE Guitar sides for bending
    Guitar sides are usually extremely thin to allow stiff veneer to bend. Those thin sides have to be supported and reinforced so that it doesn't collapse in the instrument. Cold-Bend Hardwood sides can be bent very thick, even...
